MAEDA
MK3053C/CE
Mini grue
Capacité: 2,98t x 1,8 m
Hauteur de Levage: 16,95 m
Rayon de portées: 14,3 m
Poids: C 2.880 kg, CE 2.900 kg
Présentation du produit

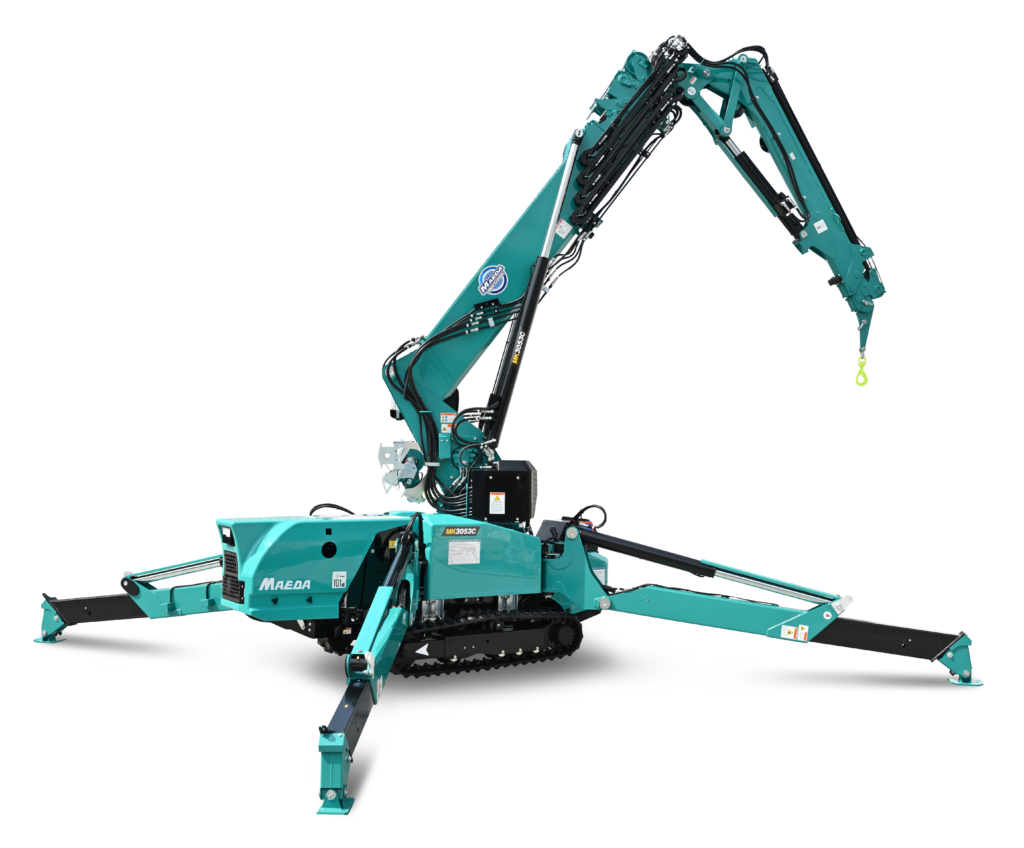

Présentation de la dernière mini-grue MAEDA à flèche articulée. La MK3053C-CE est la version diesel/biénergie équipée d’un moteur diesel puissant et fiable (C-CE) et d’un moteur électrique (CE).
Il s’agit d’une grue à radiocommande entièrement proportionnelle avec une flèche télescopique pentagonale à 5 sections entièrement automatique. Elle dispose également d’une deuxième flèche télescopique à angles négatifs à 3 sections entièrement automatique.

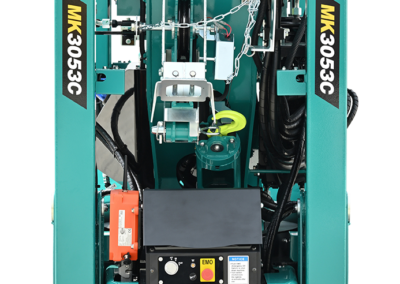

Les réglages multiples, progressifs et automatiques des stabilisateurs, ainsi que l’écartement variable des chenilles, permettent à cette grue de se démarquer de toute autre grue comparable dans ce segment.
La MK3053C-CE reste suffisamment étroite pour passer à travers une porte standard tout en offrant une capacité de levage de 2,98 t et une hauteur de levage de 16,95 m.
- Capacité de levage maximale de 2,98 t
- Capacité de levage maximale de la fléchette 1,0 t
- Hauteur de levage maximale de 16,95 m
- Stabilisateurs automatiques à multi-calage
- Écran 7 pouces
- Flèche à angle négatif (détachable)
- Radiocommande entièrement proportionnelle
- Limitations programmables de la courbe de travail.
- Contrôleur d’État de Charge (CEC) programmable avec boîte noire.
- Alarme d’inclinaison
- Treuil intégré dans la tourelle de la flèche
- Moufle 4 brins
Spécifications
- Capacité – 2,98 t x 1,8 m
- Rayon de portée – 14,3 m
- Hauteur de levage – 16,95 m
- Zone de stabilisation maximale : 4.546 mm (latéral) x 4.537 mm (avant) x 4.315 mm (arrière)
- Vitesse de translation: 0 – 2,4 km/h
- Pression au sol en déplacement: 0,85 kgf/cm²
- Moteur diesel (MK3053C/MK3053CE) : Kubota Z482-E4B
- Moteur électrique (MK3053CE): moteur entièrement fermé et ventilé 4,0 kW – 4P – 380 V
- Dimensions: 3195 mm x 780 mm x 1945 mm
- Poids sans option: C 2 880 kg / CE 2 900 kg

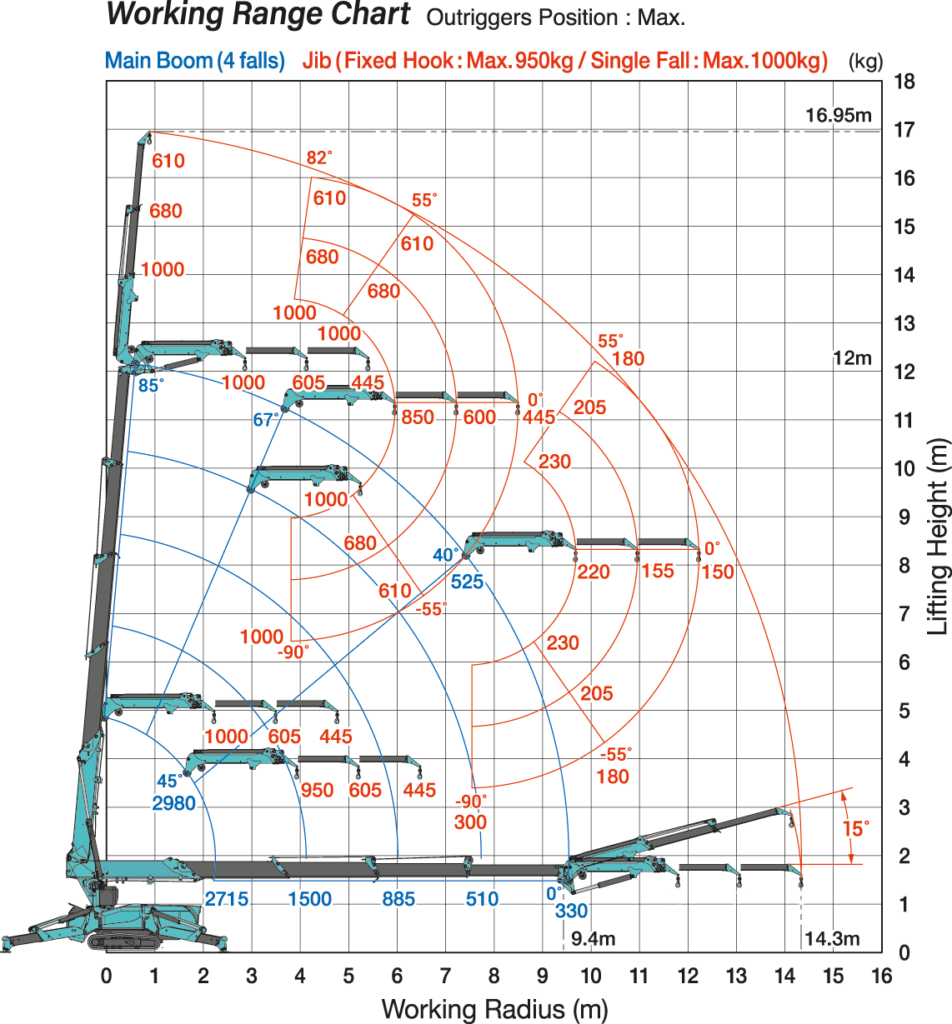

Abqaque de travail
positions des stabilisateurs

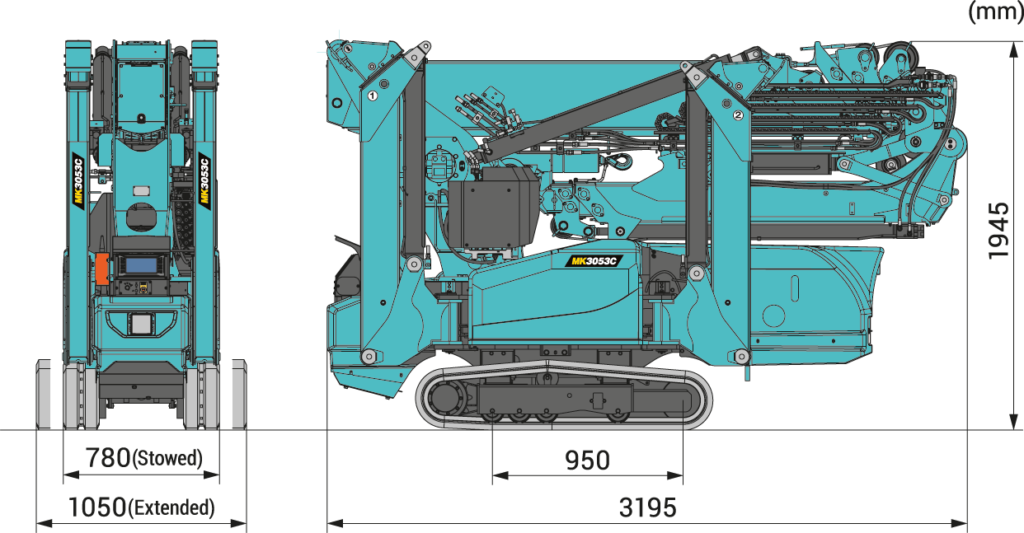

Dimensions
Plus d’informations apparaîtront ici
