MAEDA
MC305C-5
Mini grue
Capacité: 2,98 t x 2,5 m
Hauteur de Levage: 12,52 m
Rayon de portées: 12,16 m x 0,26 t
Poids: 3.970 kg

Présentation du produit
La nouvelle mini-grue Maeda MC305-5 rend ce modèle populaire encore plus polyvalent. Avec une capacité maximale de levage de 2,98t, elle est très puissance pour sa petite taille. Son moteur diesel Yanmar répond aux exigences des nouvelles normes environnementales Niveau V De l’EU La qualité et l’ingénierie de la gamme des mini-grues Maeda garantissent une longévité d’utilisation et un meilleur retour sur investissement.
- 2,98t de capacité maximale de levage
- 12,52m de hauteur maximale de levage
- Moteur à la norme EU, niveau V
- Contrôleur d’état de charge programmable
- Enregistreur de données
- Alarme de devers.
- Moufle 2 ou 4 brins.
- Moufle 1 brin (option)
- Potence 850kg ou1,5t (option)
- Radiocommande proportionnelle sans fil HBC avec écran digital
- CEC avec Écran digital 7”
- Mode multiple de la stabilisation
- Limitateur programmable de la rotation
- Caméra et phare de travail à LED
Spécifications
- Capacité – 2,98 t x 2,5 m
- Rayon de portée – 12,16 m x 0,26 t
- Hauteur de Levage – 12,52 m
- Travail en négatif maxi – -16,09 m (4 brins)
- Extension maxi de stabilisateur – 4.888 mm x 4.504 mm x 4.396 mm
- Vitesse de translation – 0-2,8 km/h
- Pression au sol en translation (MC305CRM-3) – 0,37 kgf/cm2
- Pression au sol en translation (MC305CWME-3) – 0,39 kgf/cm2
- Moteur – YANMAR 3TNV80F-SNMB / Diesel
- Puissance nominale – 15,2 kw/2.500 rpm
- Moteur électrique – 5,5 kw,3-phase 380V
- Dimensions – 4.110 mm x 1.280 mm x 1.695 mm )
- Poids – 3.970 kg
Abaque de travail

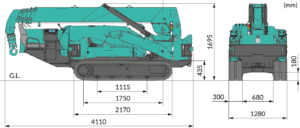

Dimensions
positions des stabilisateurs
Télécharger
Intéressé par un produit en particulier?
Example de travail
Construction
The popular Maeda cranes are used at various construction sites around the globe. In both public and private sectors, these machines are proven advantageous with their impeccable accessibility, flexibility and high capacity. Let us introduce you to a smarter way of lifting.
Glass Handling
With our innovative range, glazing works have become easier, safer and more efficient than ever. As always when handling glass, precision is as crucial as safety. Our products enable first-class glass handling. Feel free to contact us for more information.
Industrial
For industrial applications, the Maeda mini cranes can be found everywhere. From maintenance of equipment and line replacements to material lifting and installations works. Their advantages of high reliability and durability outshine the competitors.
Agriculture
The sector of agriculture is growing each year and we have seen the use of mini cranes increasing. Mostly for stonework and maintenance but also for inspections and installations. Our products are appreciated for their ability to access extremely narrow passageways and keeping the damage to its surroundings to a minimal. Further they can easily work on the most uneven grounds and terrains.
Mining & drilling
Mining and drilling operations often have a high level of requirements with many specific needs that Maeda’s products are able to meet. The environments are demanding and the difference between the wrong and right equipment can be vital for the success of the operations. The majority of our mini cranes can easily be transported to remote locations and survive the harshest conditions.
Panel & roofing
Our smaller cranes can be transported to the upper floors of high rise buildings by the service elevators and then be used for installation works of outer walls such as panels and glass frames. This popular application for mini cranes creates shorter construction periods and cuts costs by avoiding the use of expensive tower cranes. Further we provide specific products for panel handling. A large number of our machines can be used to lift material for roof constructing as well as different kind of installations.
Aviation & Maritime
Many mini cranes in our range are used for maintenance and component replacement of airplanes, helicopters, oil rigs and vessels. Both outside in the field and inside facilities. Further we have many examples where our cranes have been transported by aircraft, helicopter, barge and boat to remote locations for maintenance work. We also see an increase in the use of our machines at shipyards and marine constructions.
Special projects
With more innovative solutions and techniques appearing all the time, our range of machines has found many interesting ways of use. From large-scale 3D modeling applications to special solutions in drilling and concrete work.
